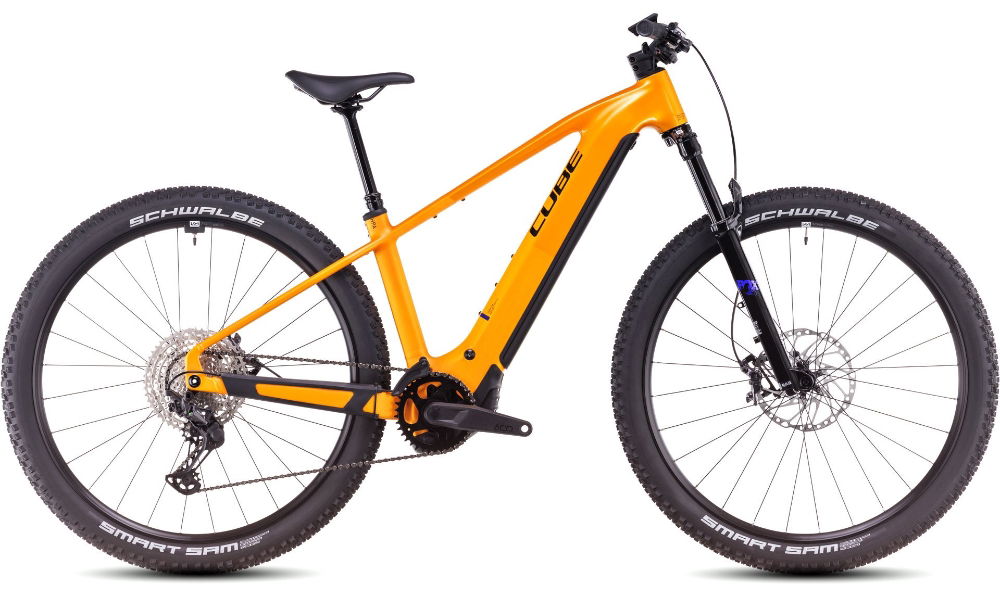

Cube Reaction Hybrid SLX 800 - SpectraOrange 'n' Violet

Cube Reaction Hybrid SLX 800 - SpectraOrange 'n' Violet

Stock Code: CUREHSLX800XLSV

We specialise in really neat frame design, and the Reaction Hybrid is no exception. With the 800 Wh PowerTube battery neatly concealed and the Bosch CX drive housed securely, its svelte lines disguise lots of clever features. It's PowerMore-ready, making it easy to add up to 250 Wh of extra battery capacity. The integrated seat clamp and cable routing complement the clean aesthetic, whilst a UDH gear hanger makes it as future-proof as possible. There's a built-in chainguide mount too, and it's also ready to accept ACID mudguards. And, with Size Split, it's easy to find the perfect fit for every rider. We've thought of everything, so you can just ride.

Frame Material

Aluminium Superlite

Battery

800 Wh

Sizes

Size Split

Frame

frame

Aluminum Superlite, Gravity Casting Technology, Agile Ride Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points, Integrated Seatclamp

Suspension

Suspension fork

Fox 34 Float AWL, 2-Position Sweep-Adjust RAIL Damper, Tapered, 15x110mm, E-Bike Optimized, 120mm (27,5: 100mm)

E-bike system

drive unit

Bosch Drive Unit Performance Line CX 85Nm (BDU38), Smart System

Remote

Bosch LED Remote

battery

Bosch PowerTube 800

display

Bosch Kiox 300

charger

Bosch 4A


Drivetrain & brakes

brake system

Shimano XT BR-M8120, Hydr. Disc Brake (203/203)

rear derailleur

Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed

shifters

Shimano XT SL-M8100-IR, 12-Speed

crankset

ACID MTB Hybrid Pro, 38T

cassette

Shimano Deore CS-M6100, 10-51T

chain guide

Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate

Cockpit

Stem

CUBE Performance Stem E-MTB 35, FPI-Link

grips

ACID React Pro

Wheels

tyres

Schwalbe Smart Sam, Performance, Kevlar, 2.6

Finishing kit

saddle

ACID Sequence Pro 160

seat post

CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm

pedals

ACID PP MTB

Product information

colour

spectraorange´n´violet

weight

24,1 kg

Art. No

808620

Geometry

S M L XL
Seat tube 370 405 450 495 545
Top Tube Horizontal 587 607 627 647 667
Seat angle 74.5° 74° 74° 74° 74°
Head tube angle 67.5° 67.5° 67.5° 67.5° 67.5°
Chainstays 456 470 470 470 470
Head tube 159 110 120 130 145
Wheelbase 1157 1176 1198 1218 1240
BB-Height to Hub 46 65 65 65 65
Protrusion height - 80mm 755 778 782 787 824
Reach 409 420 437 455 471
Stack 646 653 662 674 685

Ergonomics

S S L L XL
Stem length 60 60 60 60 60
Angle stem 12° 12° 12° 12° 12°
Handlebar width 740 740 740 740 740
Crank length 165 175 175 175 175
Length seat post 361 361 425 425 425
Diameter seatpost 31.6 31.6 31.6 31.6 31.6
Max. insertion depth seat post 205 250 280 230 270
Stroke seatpost 100 100 130 130 130
Diameter tire maximum 722 760 760 760 760
Width tire maximum 66 66 66 66 66

All values are given in millimetres or degrees.

When you're exploring new places, the last thing you want is to be worrying about your bike. That's why the Reaction Hybrid SLX 800 is equipped with Shimano's XT 12-speed gears and matching XT hydraulic disc brakes. Together, they offer easy use and exceptional reliability, so you can just concentrate on the ride. It's the same story with the Fox 34 AWL Float suspension fork, which combines smooth bump-swallowing comfort with excellent steering precision. The Bosch CX drive and 800 Wh PowerTube battery speak for themselves, offering quiet and unobtrusive pedal assistance for miles of smiles. The Newmen Performance 30 wheelset is shod with 2.6in Schwalbe Smart Sam tyres for excellent grip and ride comfort. And we even fitted a remote dropper post, for increased confidence on tricky trails. Where's your next adventure?
